king xr 8.5_X-COBRA

PRODUCT INFO

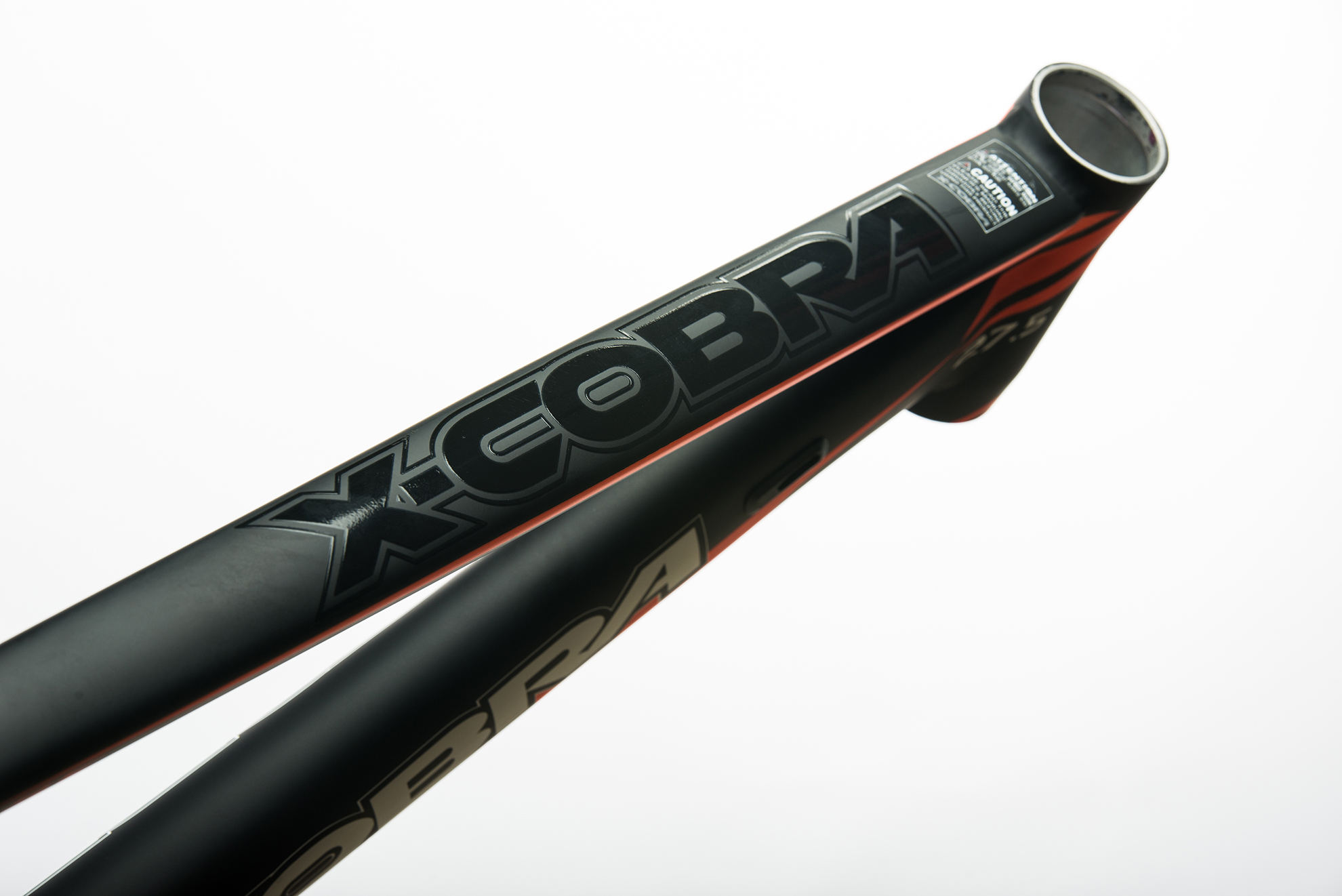

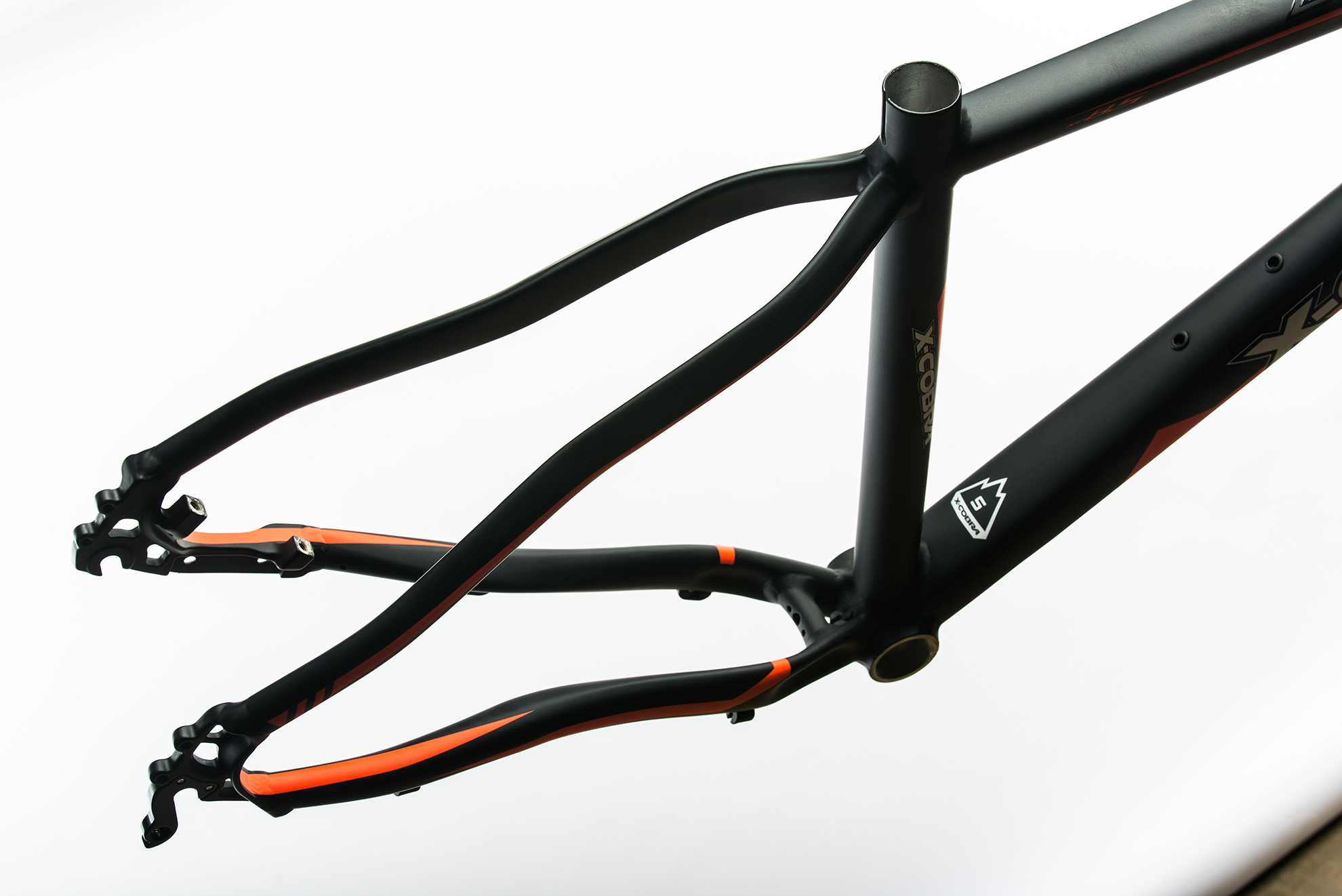

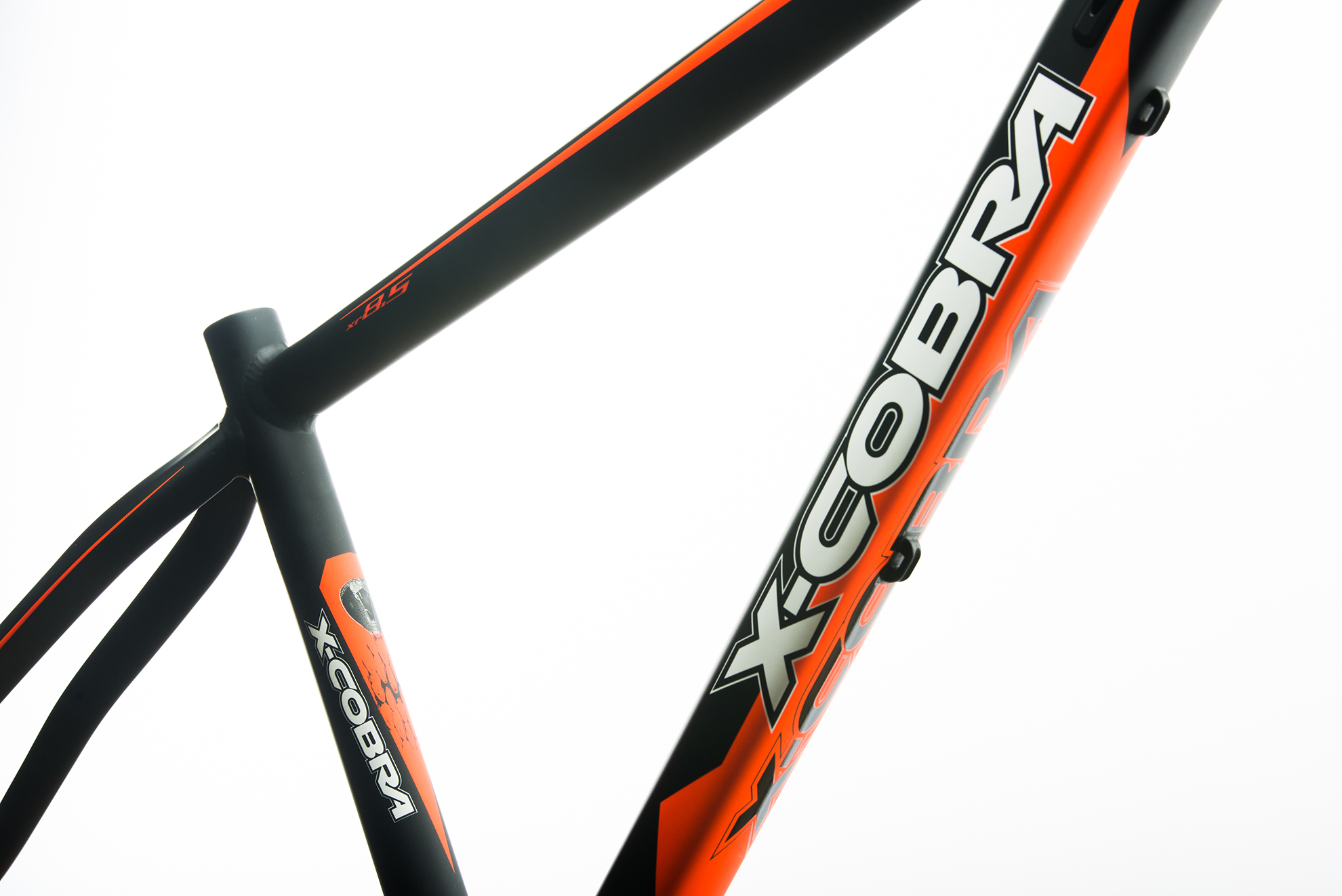

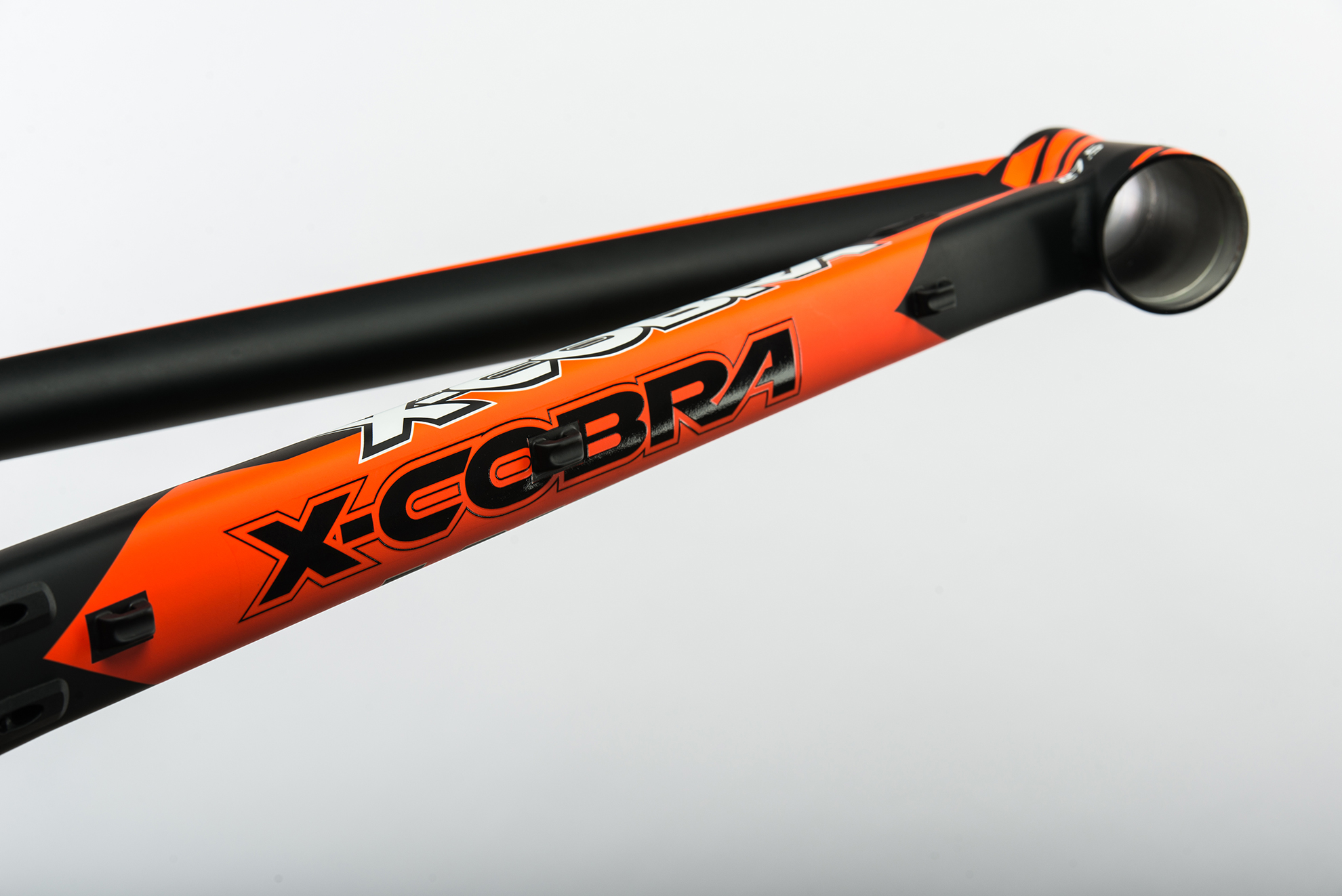

X-COBRA KING 8.5 made from 6061 aluminum customized hydro-formed SEVEN butted tube set with integrated gusseting for high strength with minimal weight. Full inner cable routing, perfect headtube and geometry, with perfect weight only 1480g for 27.5’’(S). Painting design with fine lines matching muscular tube shape, make it absolutely an artwork. The COBRA LOGO highlight its aggressiveness.

2 version available 27.5’’ and 29ER.

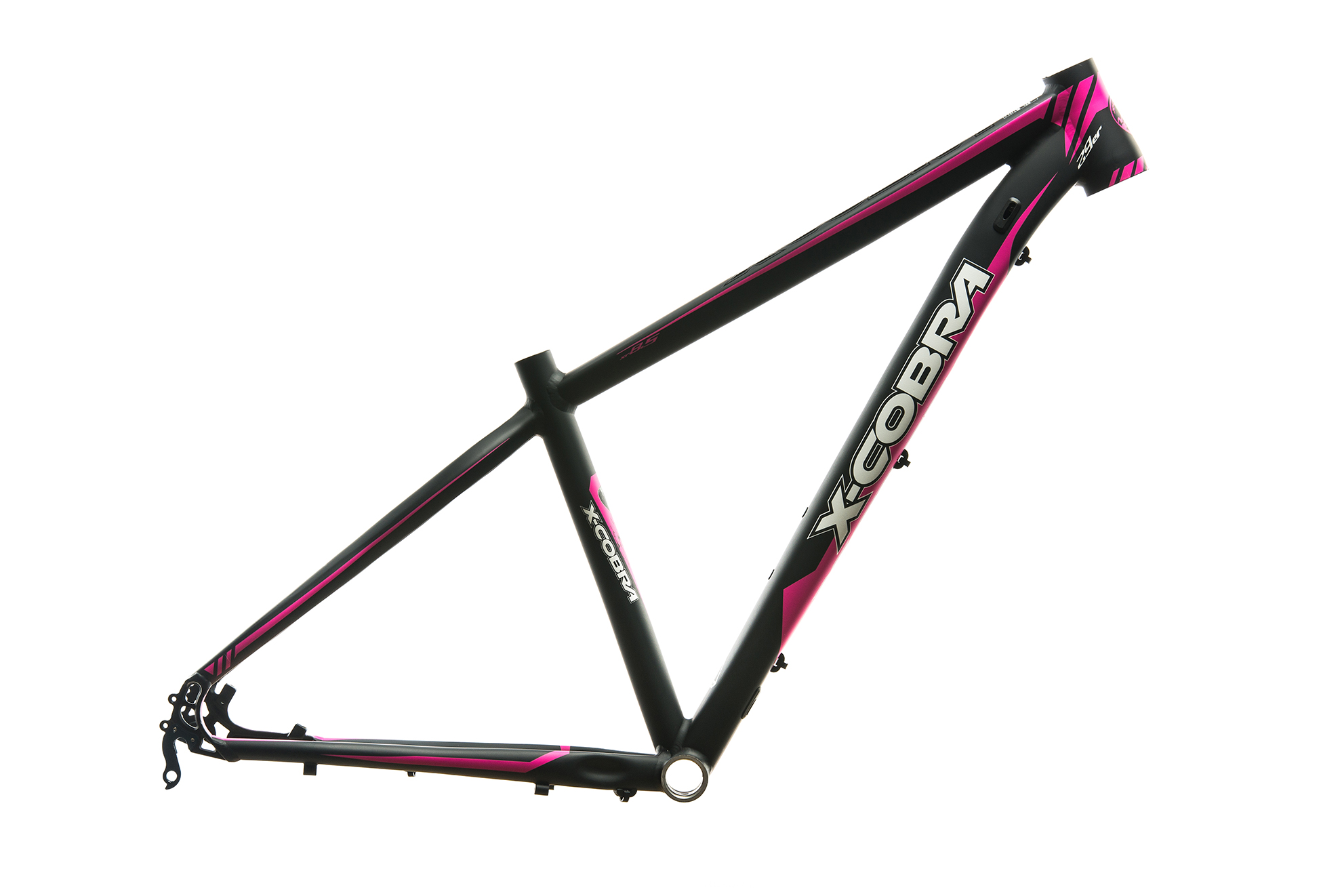

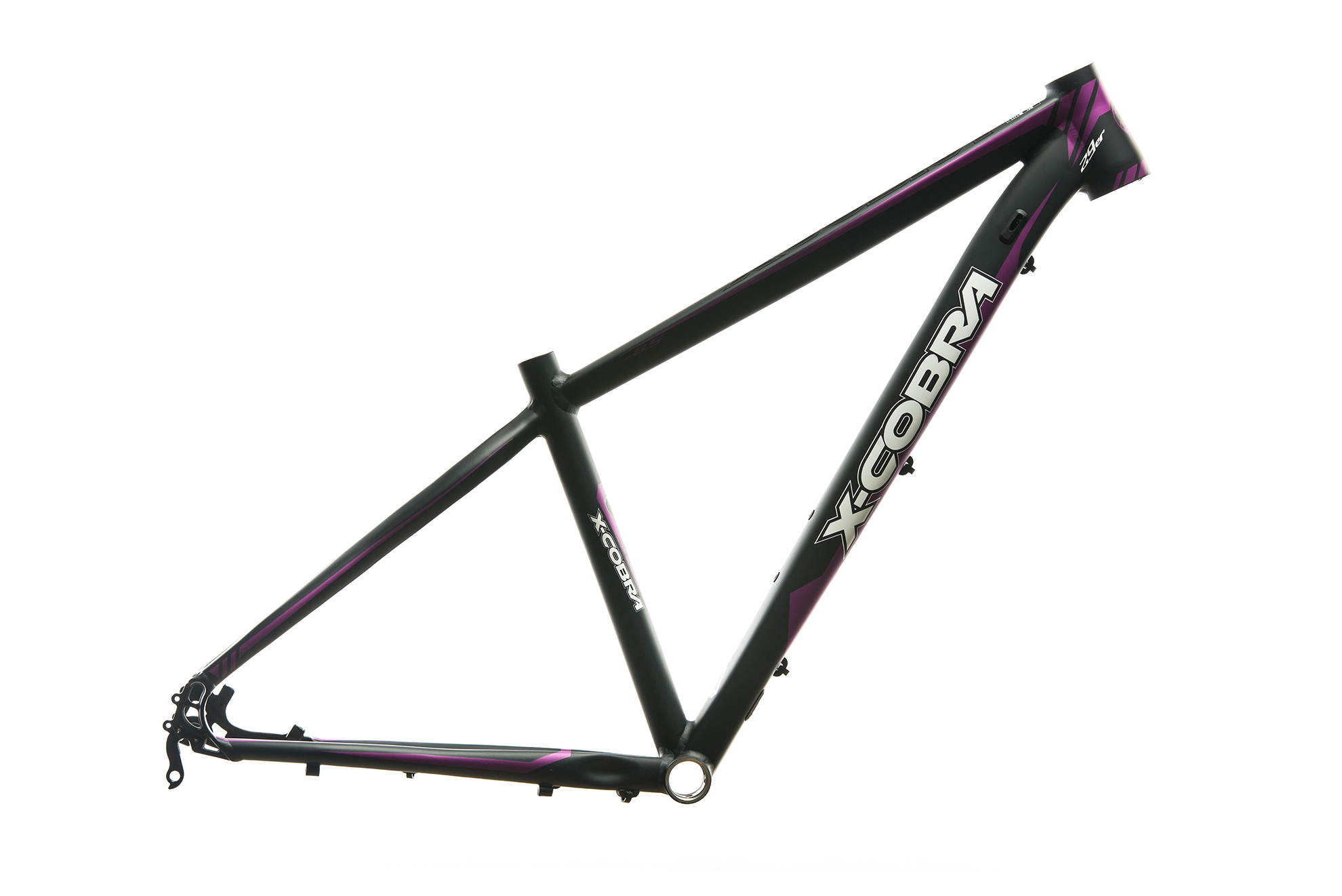

Painting in 4colors.

TECHNICAL SPECIFICATION

Model: KING8.5 27.5 or 29ER
Tubes: AL6061-T6 aluminium frame construction
Cable Routing: Internal or external cable routing option

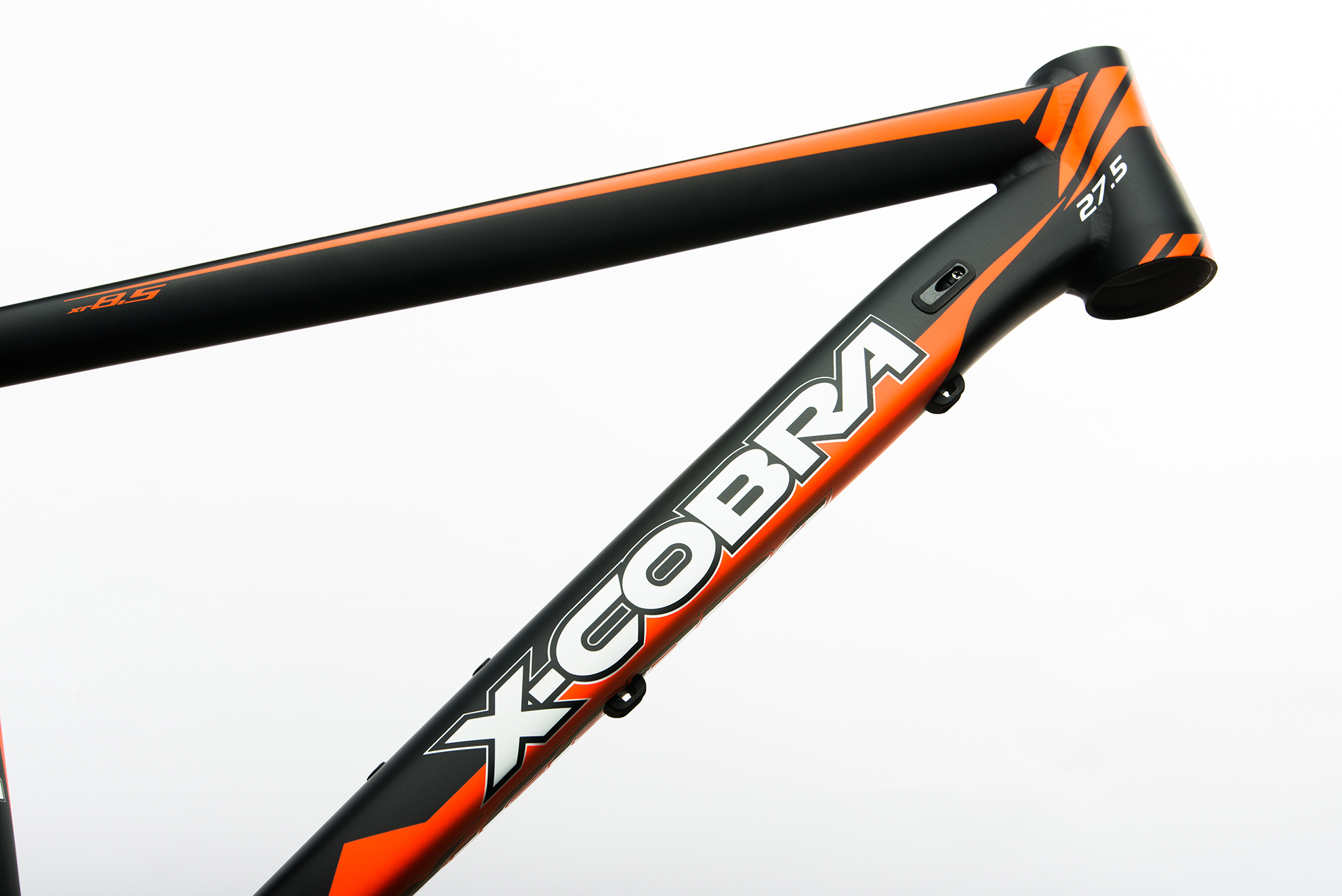

Head tube: semi-integrated tapered ZS44/ZS56, head tube length 110mm (4.3")

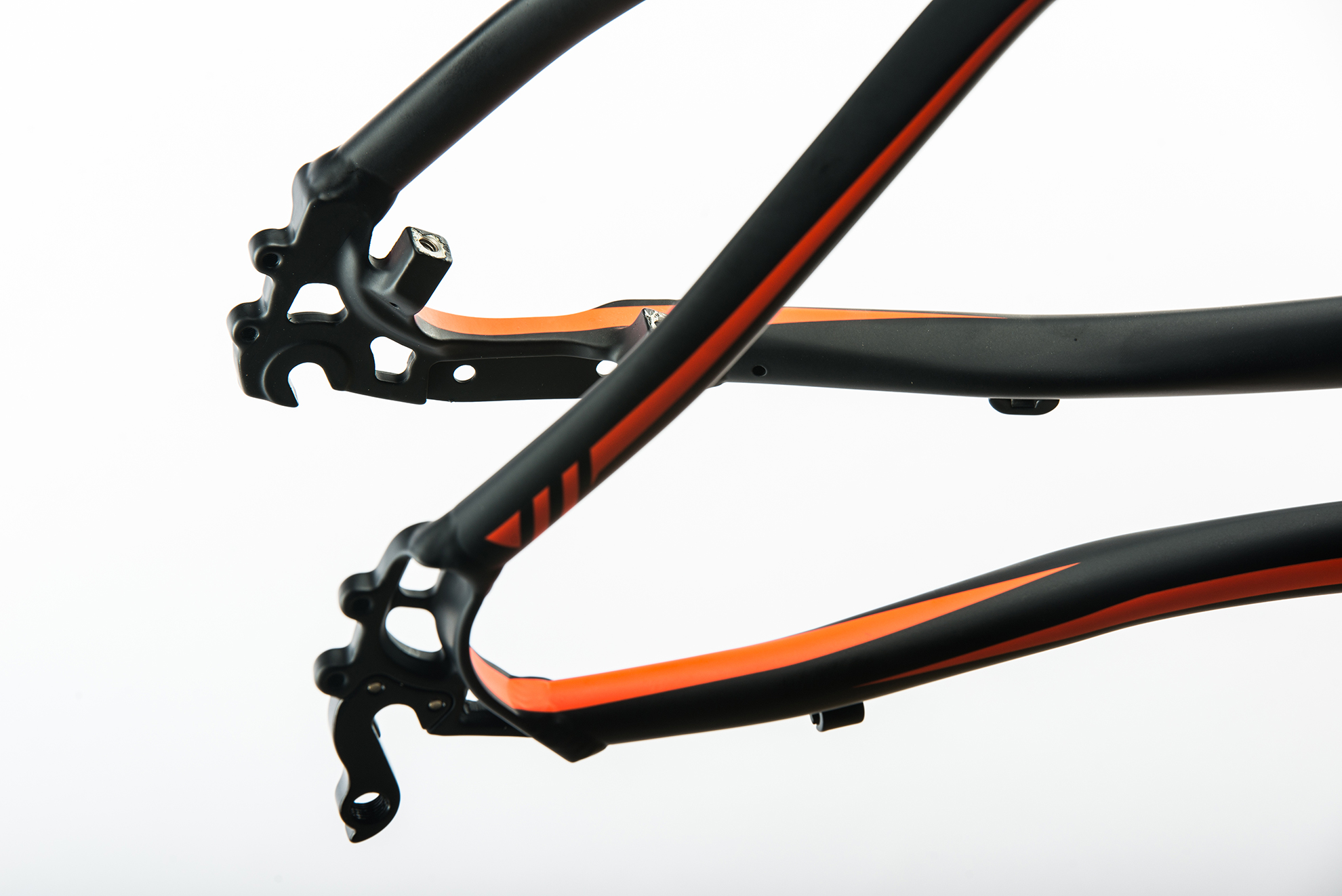

Rear hub: rear hub 135mmx10mm
BB: threaded 68mm
Seat post/clamp: 30.9mm / 34.9mm
Max tire: 27.5X2.35 29ERX2.35
Weight (w/o shock): 1500g
Size: s(16) M(17.5)L(18.5)

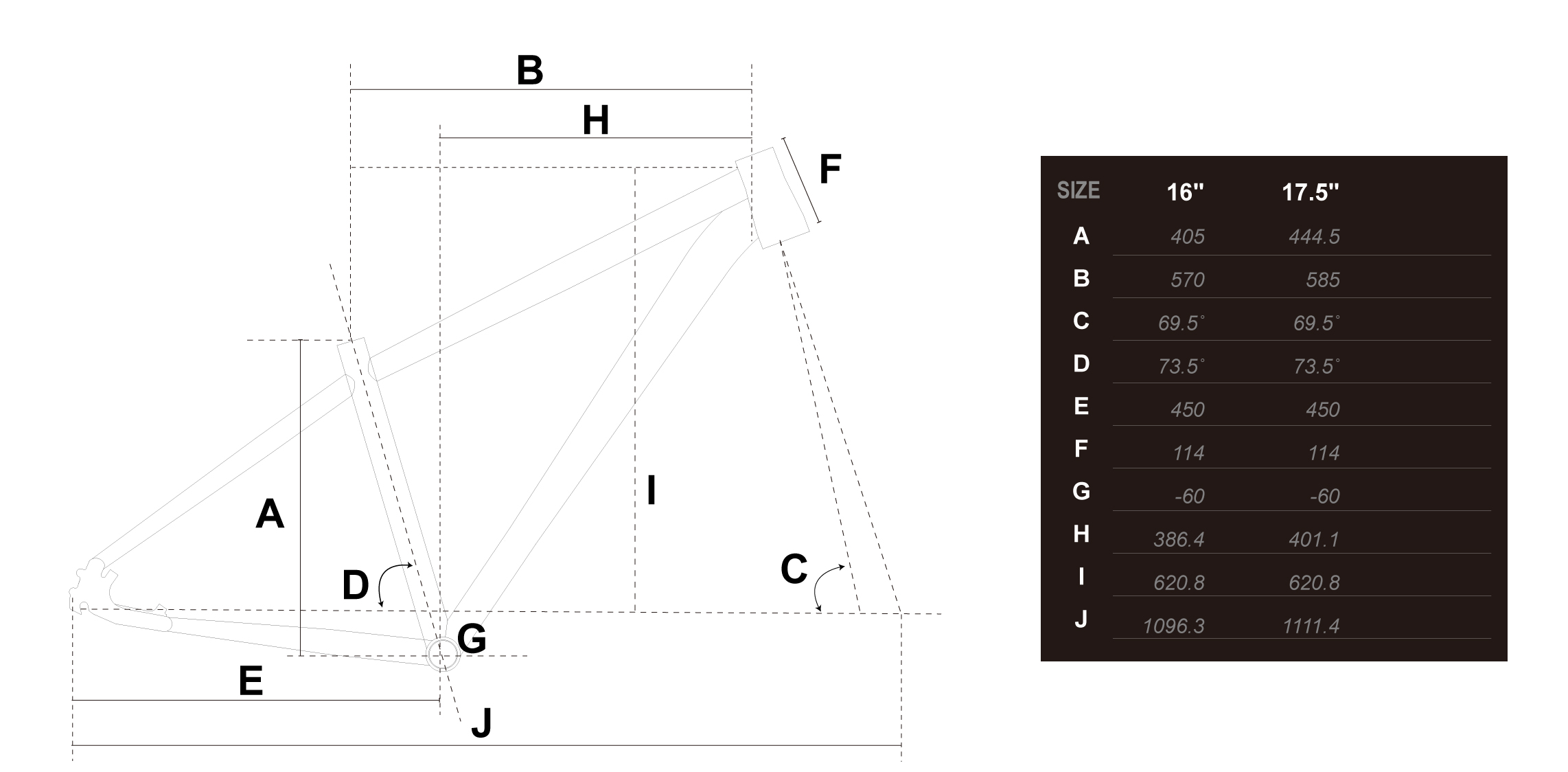

GEOMETRY

king xr 8.5
