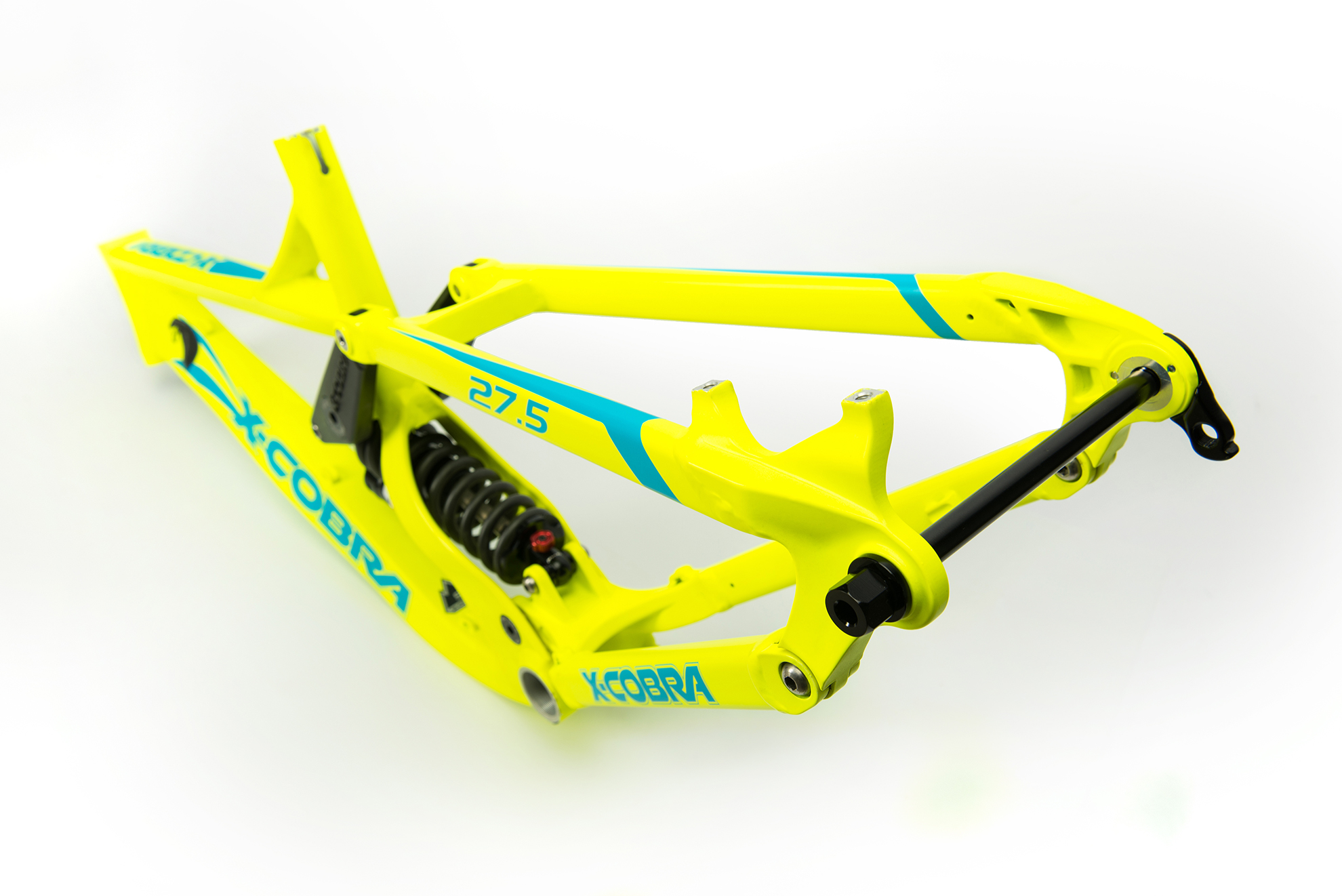

KING 240

retail price:
USD 2380
More info
PRODUCT INFO
Superb geometry and excellent maneuverability are essential elements for serious downhill frame. Every single downhill racer is meant to conquer mountain, forest-road and tracks. X-COBRA KING 240 is this best weapon, no doubt.

We integrate the real cobra into our frame design, functionally and aesthetically.  Suspended link structure provides excellent stability to entire rear triangle.

Our rider experience the Speed and passion the KING 240 brings during testing in Norway Scandinavian Mountains .


KING 240 applying to both 26” and 27.5”, lowered bottom bracket height, provides racers maximum experience, fun and dominance over the most challenging tracks.  Optimized frame geometry and maximized drain holes further make the frame incredibly light weight. All bearings used are ENDURO from American and all bolts are made in Taiwan, guaranteeing maximum performance for the racer.


Frame is full aluminum alloy 6061 made, connector material is 7075, machined by CNC, equipped with SRAM KAGE RC shock, harmonizing the track and racer with X-COBRA KING 240.
TECHNICAL SPECIFICATION
Model: KING 240
Rear wheel travel: 203mm travel
Tubes: AL6061-T6 aluminium frame construction
Rear shock: 208mm, rockshox kage rc
Cable routing: internal or external cable routing option
Head tube: semi-integrated tapered ZS44/ZS56, head tube length 125mm (5")
Biggest chainring: up to ~36t
Rear hub: rear hub 150x12mm, rear axle included
BB: threaded 83mm with ISCG-05 mounts
Seat post/clamp: 30.9mm / 34.9mm
Max tire: 650B x 2.5"
Weight (w/o shock): 5100g
Size: s(15.5) m(16.5) L(17.5)
